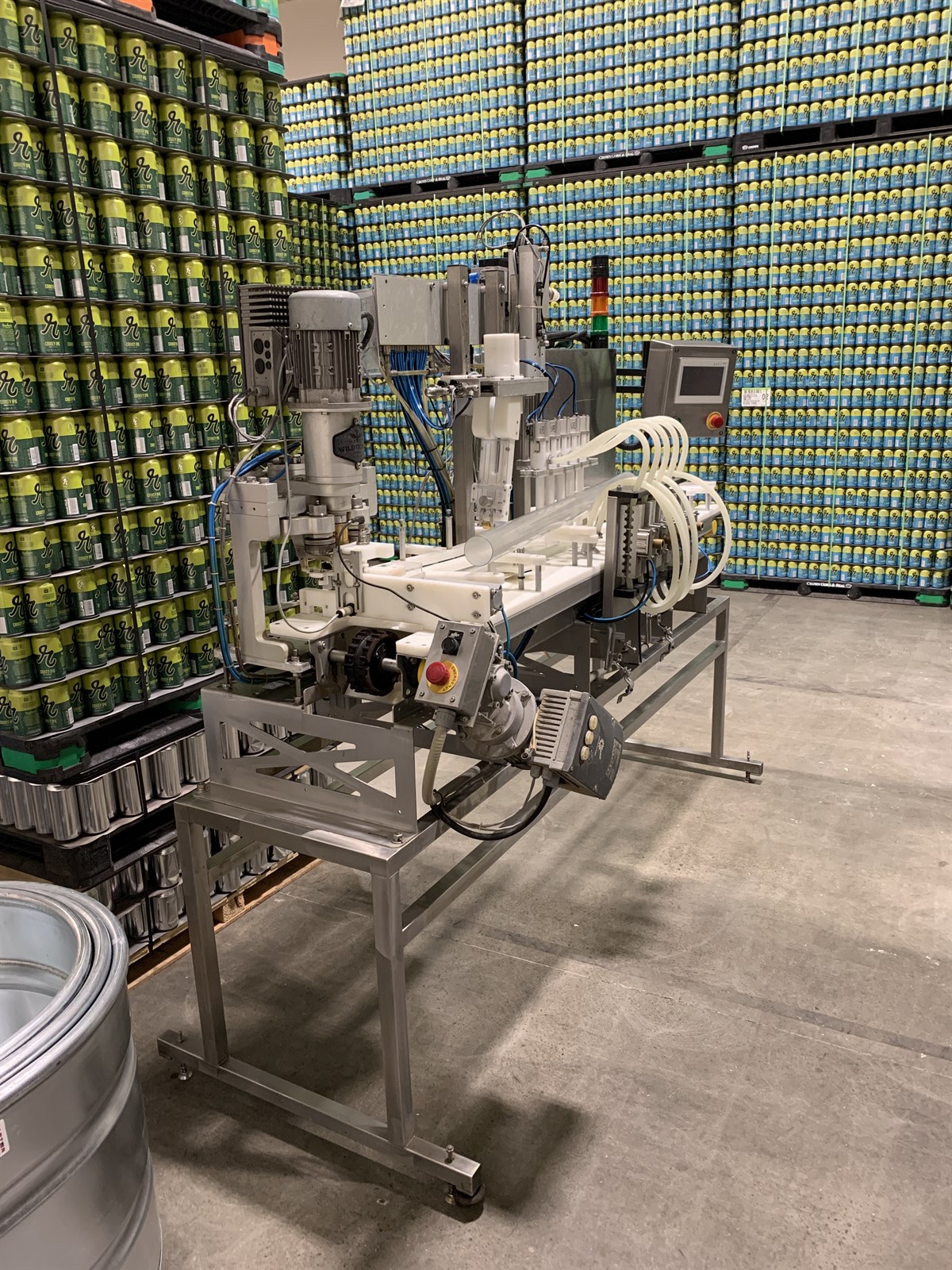

Wild Goose Five Head Filler 50-54 CPM - 12oz/16oz ready

Mfg Date: 2015 (bought initially as a two head and increased to 5 heads with WG upgrades)

Dimensions: 88"L x 38"W x 108"H (79"H with lid tube removed)

Power: 115v Single-phase 17A @115VAC 50/60HZ (Full load 18.5a)

Air: 90 PSI 2 12.2 CFM, air dryer and coalescing air filter rated to 0.10-0.01 micron are required

Utilities: Co2 at 10-12 psi, Water (for rinsing cans if applicable).

Weight: Approx 765lbs

• 50-54 CPM 12oz, 35-45 CPM 16oz depending on beverage conditions

• Five fill heads with independent flow control by one seamer w/ LOE end chucks

• All new sensors, can lift actuator and can push actuator

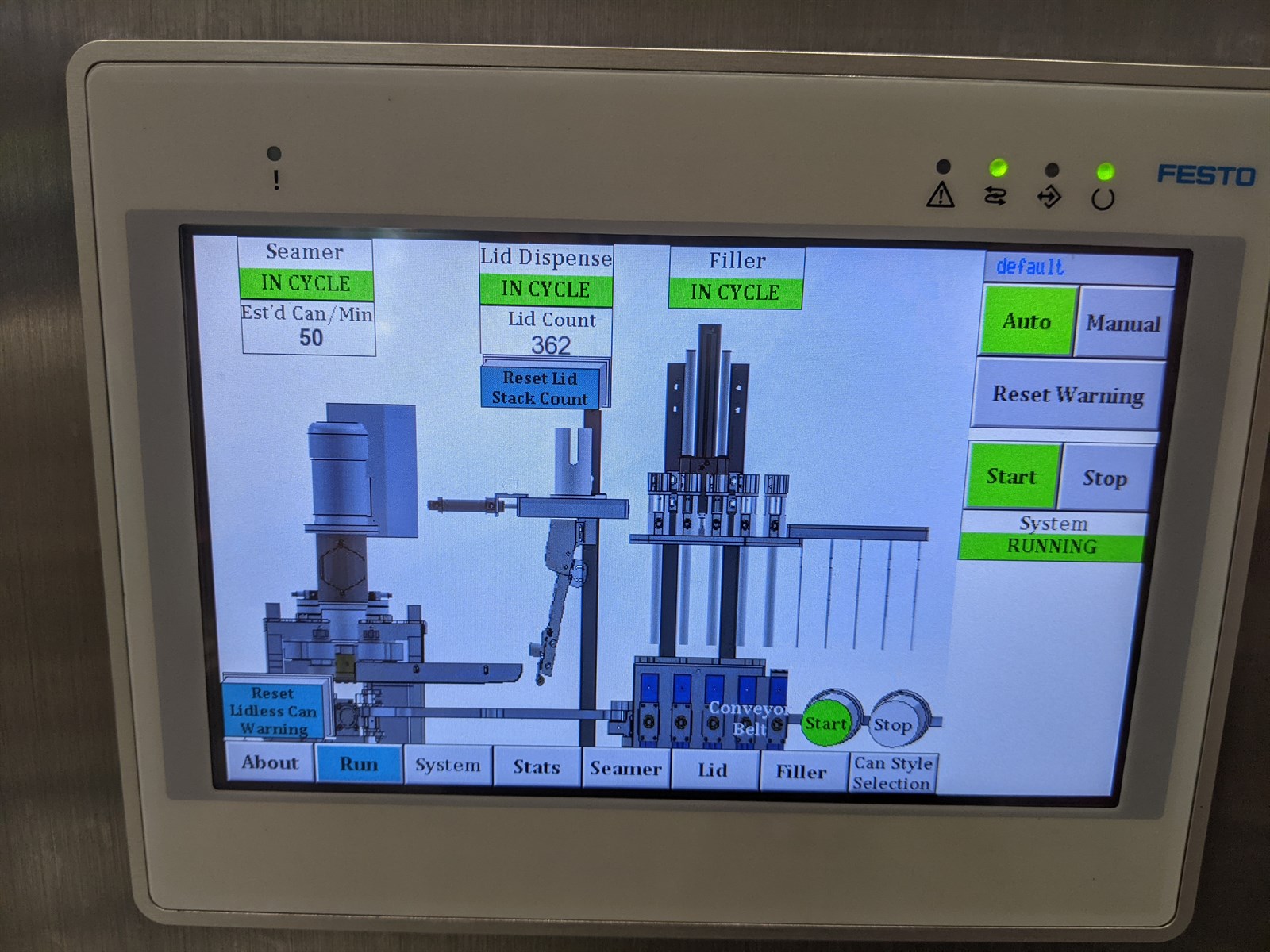

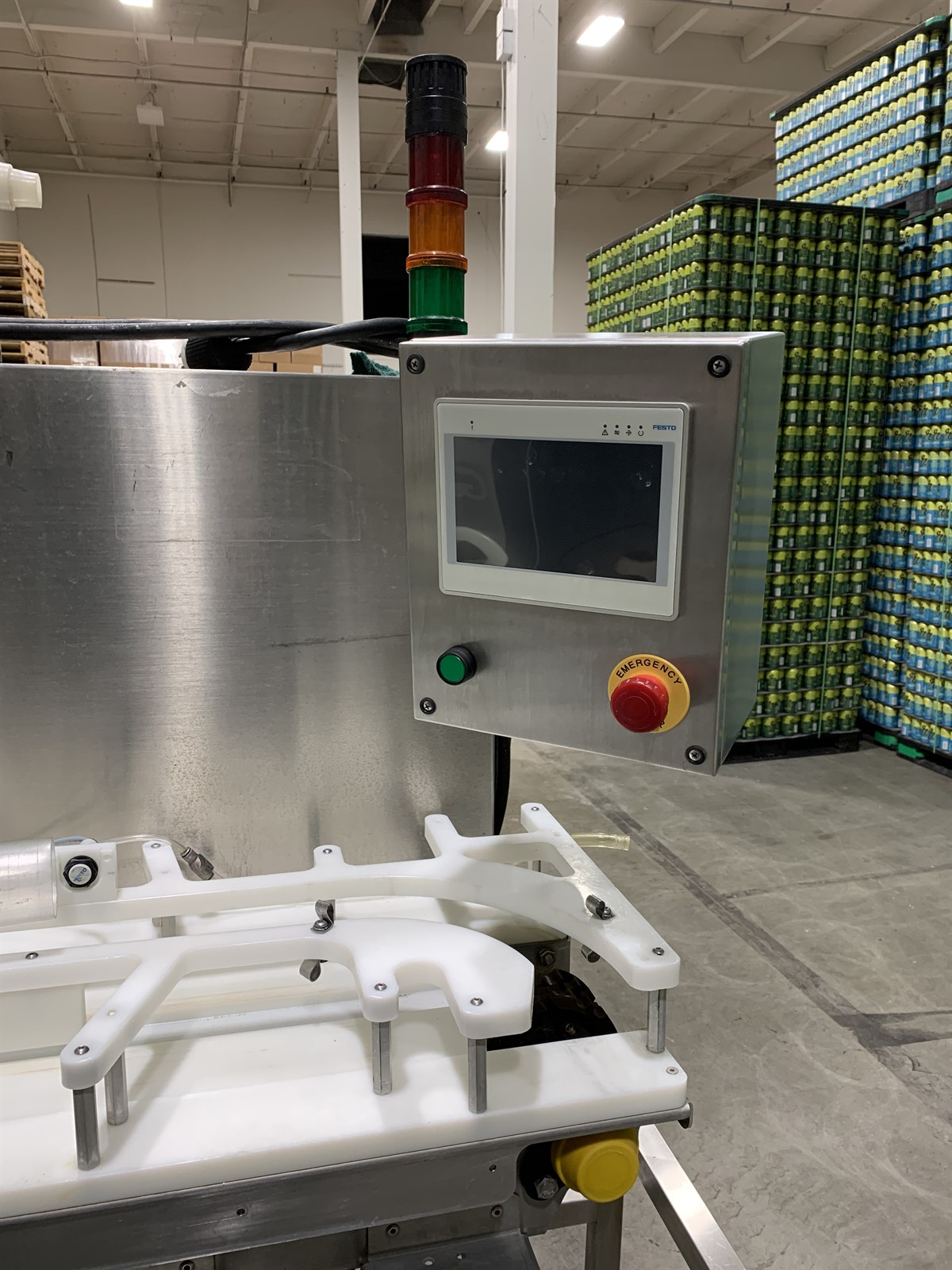

• Touch screen with simple interface to control all pneumatics

• Software updated in 2019

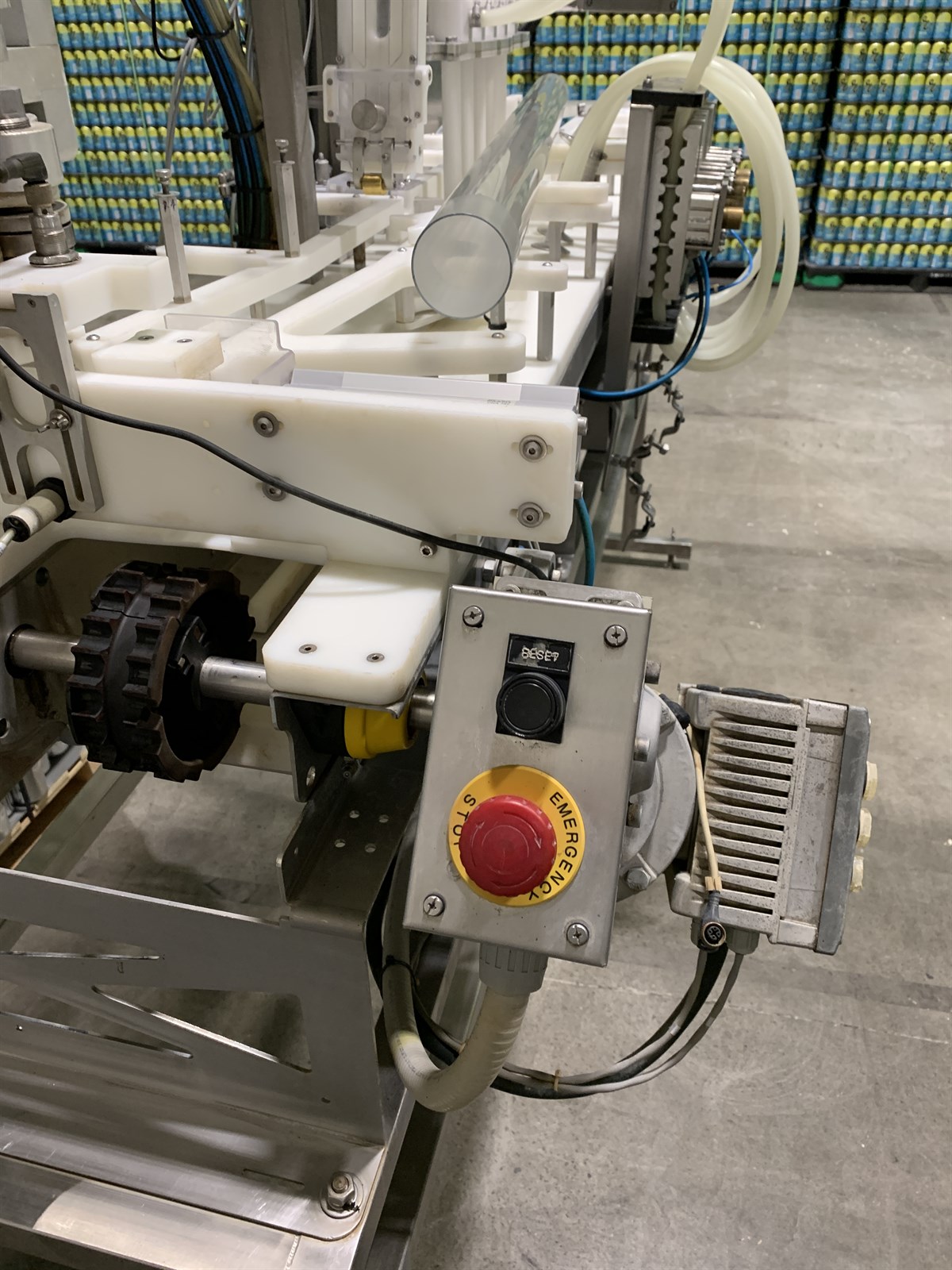

• Two emergency stop buttons & lock out, tag out ready main power and air

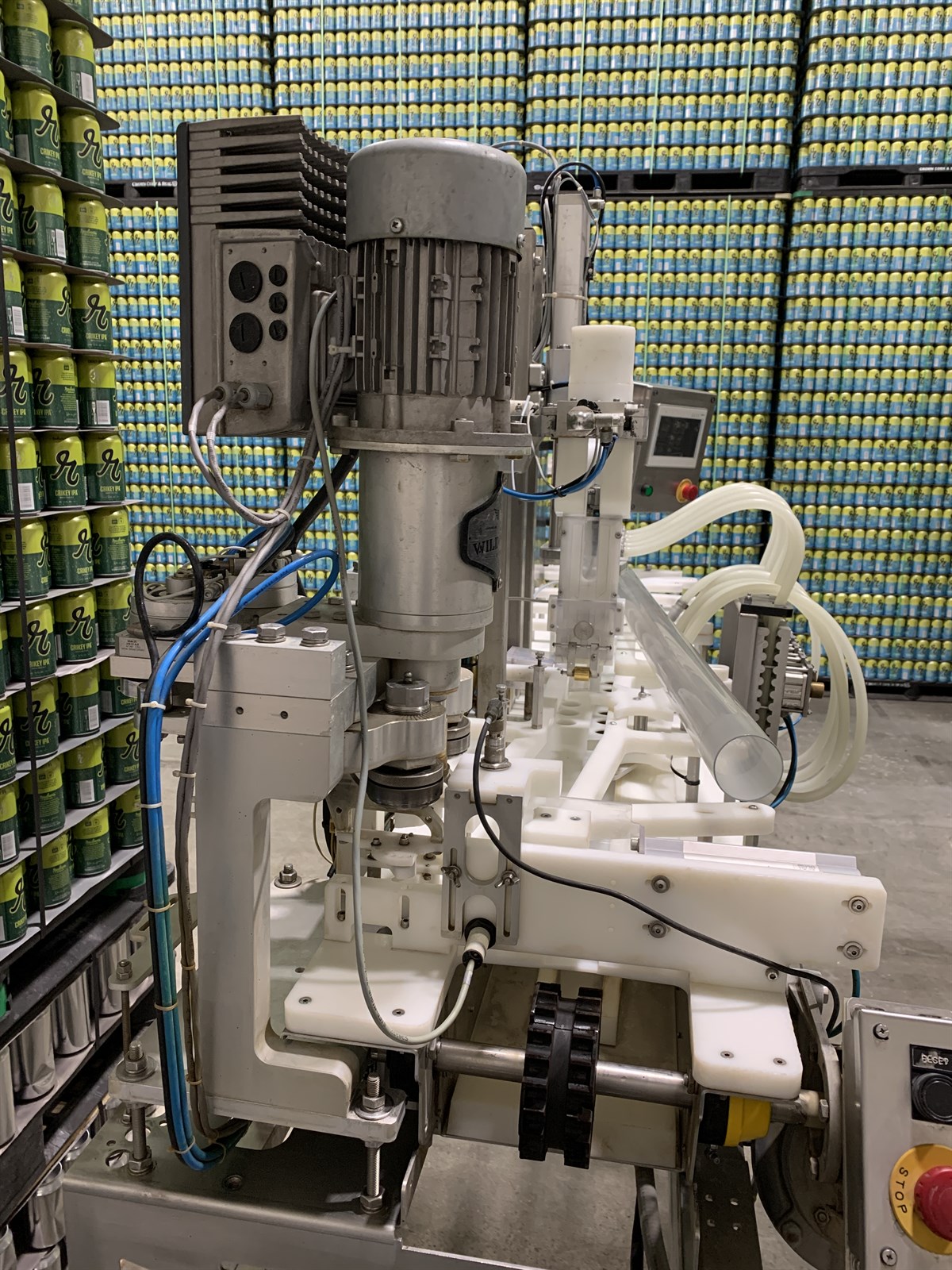

• Seamer station setup with top and bottom adjustable stability fingers to maximize seamer speed

• Lid station can indexing wheel for improved lid placement

• Includes 12oz and 16oz changeover kit setup for 202 aluminum cans

• Manifold for five fill heads with pressure and temperature sensor included

• Fill timing adjustment via HMI and flow/speed control with compression high flow screws

• Additional manual fill head height adjustment, relative to the bottom of the can, to adjust for more or or less foam to further compensate for difficult beverage conditions

• Automatic timed can water rinse (for cans on a twist rinse system) with HMI control to adjust rinse time

• Automatic Co2 can pre-purge with HMI control to adjust purge time

• Station start delay to quickly adjust slow down CPM without having to change fill timing or flow control for any downstream

• Lid dropper sensor and lid counter with visual alarm when lids are low

• Lidless can sensor with visual or audible alarm and bypass option to eliminate filler interruptions

• Can rinser and dryer post seamer
