We have closed our brewpub business, and are selling our beloved brewing system, including all the items and equipment below. This system was custom made for us here in Colorado, and the manufacturer has been excellent throughout. We experienced no failures with the system and have kept it maintained in excellent condition, despite being used and having normal wear during 18 months of use. The system is very user friendly, and we were able to produce award winning beers, with a consistent brew-house efficiency in the high 80%-90%range. It has been dismantled and is secured in storage ready for shipping. This system is ready to start brewing, fermenting and cooling kegs etc. right away.

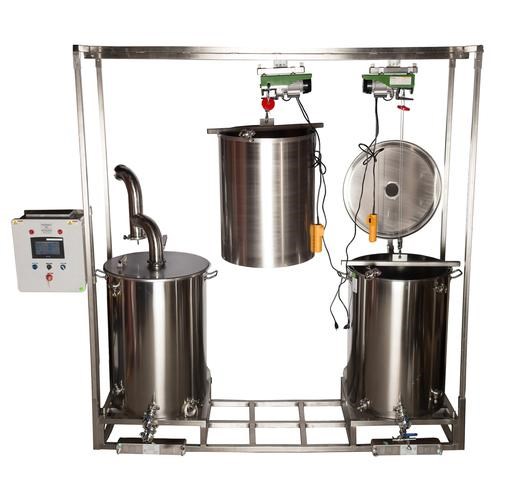

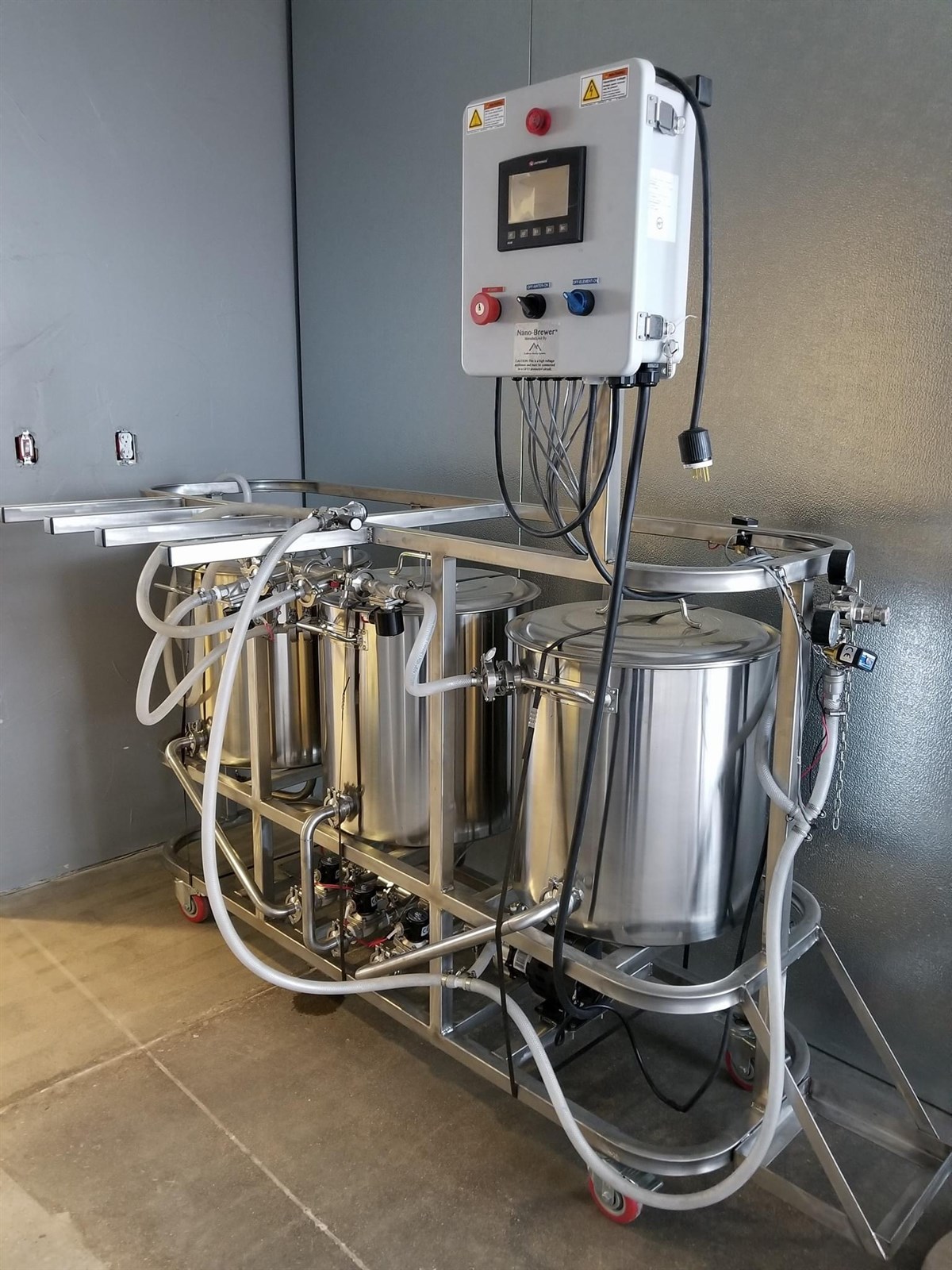

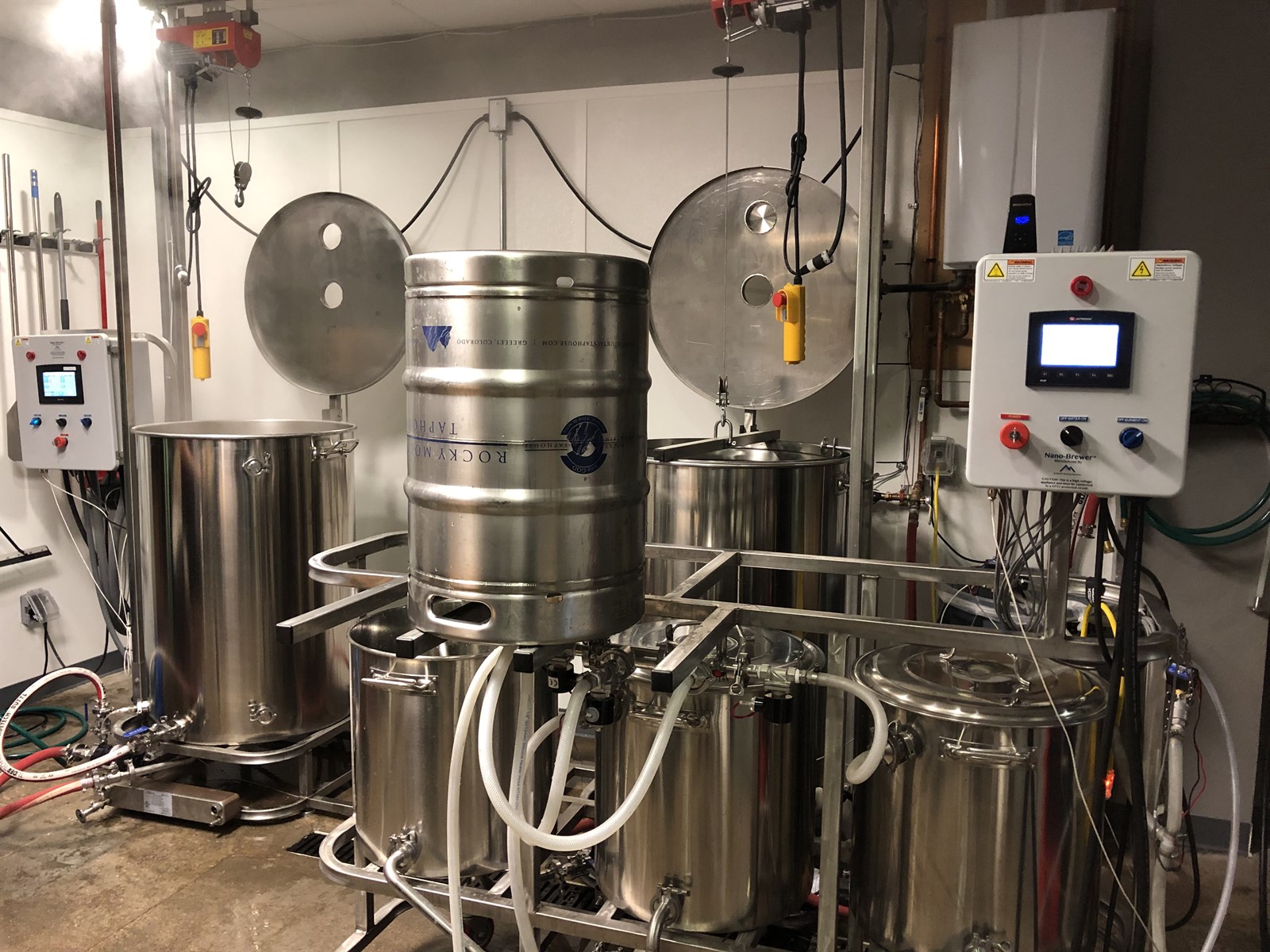

BREWING SYSTEM
- 4BBL version (460L) : 8' wide x 9' tall x 32 deep.
- Two 100 Gallon brew kettles with sanitary tig welded tri-clamp ports (190L, 380L or 568L)
- Flow control with stainless hot water meter,
- 2 stainless solenoid valves and counter Two Stainless Steel mash baskets
- 2 x Stainless steel pumps
- Welded and polished 304 stainless steel frame with control arm and dual hoist support
- Electric hoist on stainless steel trolley U.L. /CSA or CE listed 208V/240V
- Electric brewery control panel with PLC Touchscreen Operation
- 5500W stainless steel heating element assembly's with tri-clamp connection, 2 15kW 3 phase elements
- 2 tri-clamp RTD temperature probes
- Two Plate chillers, 40P x 18.5" long
- All tri-clamp valves, fittings and hardware.

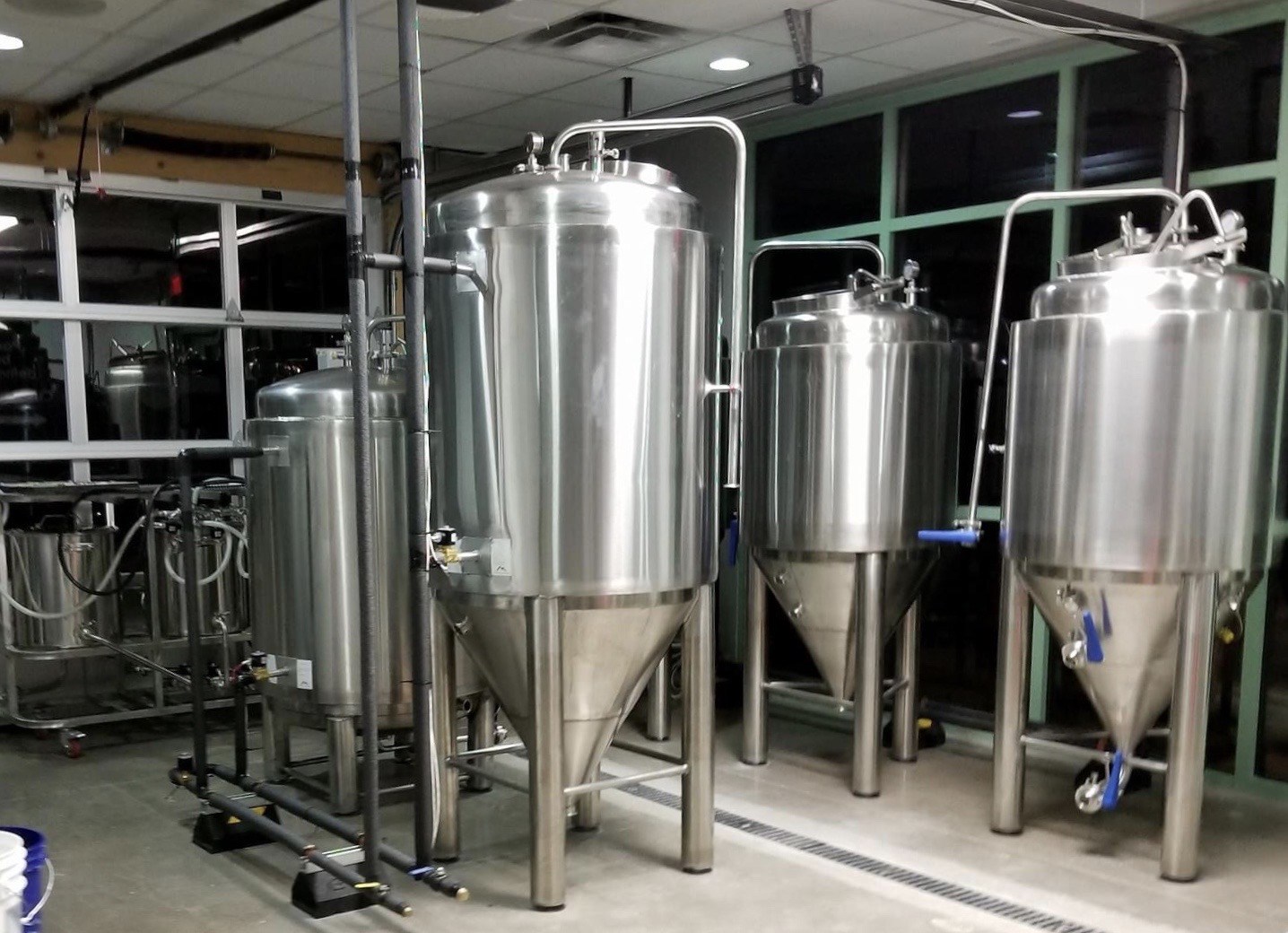

FERMENTERS
- Three 2bbl conical jacketed fermenters
- One 4bbl conical jacketed fermenter
- One 4bbl jacketed Brite Tank
- 11 gauge 304SS tank body
- Dimple glycol jacket (jacketed tanks only)
- 3" of insulation (including cone on fermenters, jacketed tanks only)
- Valves, pressure gauge, pressure/vacuum valve, CIP spray ball, Thermowell and carbonation stone.
- 25% head space
FERMENTATION CONTROLLER
- 7" PLC Color touchscreen
- Control of up to 8 vessels
- Up to 3 cooling loops/bypass valves
- Single or Dual cooling Fermentation scheduling (hold at XX degrees for XX hours then go to XX degrees)
- Auto or manual cold crash.
- Optional remote network notification
- Controls 24V DC valves.
- UL/CSA Listed
- Probes and valves
- DOES NOT COME WITH GLYCOL CHILLER
WALK-IN COOLER
- 6' 10" x 8' x 9' COOLER Cooler 4" Floorless
- Lag Down Ceiling
- U.L. Flame Spread Rated, U.L. Electric Listed - NSF Listed 2009 EISA Compliant
- Stucco Galvanized 26 Ga (Interior)
- Stucco Galvanized 26 Ga (Exterior)
- Cooler 4" Wood Screed and Cove Molding 4" Wood Perimeter Polyurethane
- Cooler Door 34" x 78", Digital Thermometer/Switch
- Spring Loaded Hinge (2)
- Door Closer/K-58 Latch and Striker
- Vapor Proof Light Fixture
- Coil Low Profile QRC Air Def 7,000 BTU 115 V
- Condenser
PORTABLE KEG WASHER SYSTEM
- PLC touch Screen Operation 5 Stage cleaning cycle (pre-rinse, caustic wash, rinse, sanitize and CO2 Purge)
- Temperature controlled heated caustic tank (requires 30A 208V or 240V single phase circuit) To only maintain temperature you can use a 120V 15A circuit.
- One keg station, 15 kegs per hour
- 3 dedicated tanks, fresh water, caustic, sanitizer
- CO2 Bottle storage
- Set to all CO2 purge, or air purge between cycles and final CO2 purge and pressurize.
- Pump on/off cycling to clean spear exterior.
- Each cycle is fully customizable bu the end user.
- Timed fresh water refill
- Up-gradable software if new features are released.
- UL/CSA listed
